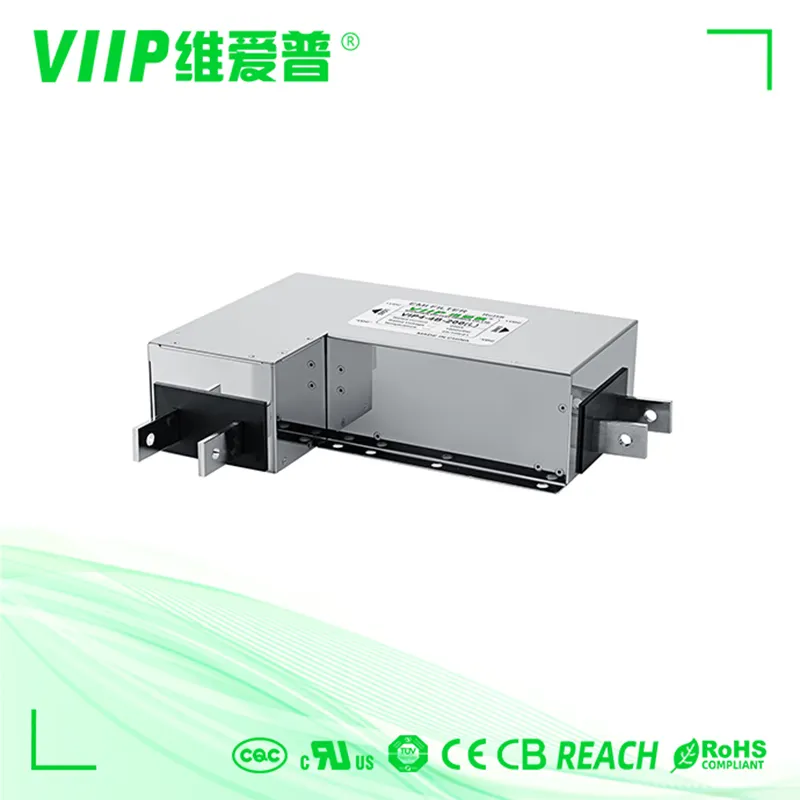

VIIP Filter's Single Phase Emi Filter

Our company anti-interference magnetic core production, the international advanced automatic magnetic material production testing line. EMI FERRITE CORE products a total of more than 300 kinds of specifications models to meet the needs of different products. All products are in line with ROHS, REACH environmental requirements. Most of the products are exported to Europe, America, Japan and South Korea, Southeast Asia and other countries and regions.

EMI FILTER products are in line with CQC, UL, VDE, CE and other safety certification requirements. Products into a comprehensive ROHS, REACH environmental requirements. Product specifications complete, the current from 0.1A-3000A. There are a variety of different installation and connection for customers to choose, accepting custom design according to the customers’ special requirements.

Innovation affects the future! We warmly welcome you to contact us and common progress for a better tomorrow!

In the development and testing of computer hardware, EMC magnetic rods can simulate various electromagnetic radiation scenarios, including static fields, magnetic fields, electric fields, etc. By placing the magnetic rod close to computer hardware, developers can test the hardware's radiation and sensitivity performance in different electromagnetic environments. This is crucial for ensuring the normal operation of computer hardware in real-world environments, especially in scenarios with significant electromagnetic interference, such as industrial automation environments and military systems.

In the development and testing of computer software, EMC magnetic rods can simulate interference signals in different electromagnetic environments. Developers can connect the magnetic rod to the computer system and introduce various interference signals to test the software's resistance to interference. This is vital for testing the robustness and stability of software, especially when computer systems face various electromagnetic interferences in real-life situations.

Apart from hardware and software development and testing, EMC magnetic rods also play a crucial role in computer maintenance and troubleshooting. When a computer malfunctions, it is often challenging to determine whether it is a hardware, software, or electromagnetic interference issue. By using EMC magnetic rods, technicians can expose the computer to different electromagnetic environments to determine whether the fault is due to hardware, software, or electromagnetic interference.





In conclusion, EMC magnetic rods are extensively applied in the computer field, helping developers ensure that computer hardware and software operate normally in various electromagnetic environments. They also assist technicians in troubleshooting computer faults, playing a key role in enhancing the reliability and stability of computer systems, which is crucial for ensuring the security and reliable operation of computer systems. Therefore, EMC magnetic rods are indispensable tools in the computer industry.

Shenzhen VIIP Electronic Co., Ltd. is an electromagnetic compatibility service provider primarily engaged in the research, production, and sale of EMC anti-interference components. Its main products include power filters, EMI anti-interference magnetic cores, amorphous magnetic ring inductor series, and EMC shielding materials. The company has a production base for anti-interference magnetic cores and a fully automated magnetic material production testing line. There are over 300 specifications and models of anti-interference magnetic core products to meet various product requirements.

Certifications and Market BenefitsWith our support, the client successfully achieved UL certification and EMC compliance—marking a vital step toward expanded global market access. These certifications validate the product’s safety, reliability, and electromagnetic compatibility, reinforcing the manufacturer’s industry reputation and customer confidence.Our Commitment to Customer SuccessWe pride ourselves on delivering tailored testing solutions aligned with international standards, empowering our clients to meet regulatory requirements efficiently. Our team’s deep technical expertise and proactive approach ensure that product development cycles are shortened, costs are controlled, and compliance is achieved with confidence.As industry leaders in EMC testing support, we remain dedicated to helping manufacturers like yours excel in global markets by providing expert guidance, advanced testing services, and strategic solutions.ConclusionAchieving EMC compliance is a complex but critical process. With our comprehensive testing services and technical support, your products can successfully meet international standards—accelerating your journey toward global certification and market success.

I. Definition of Electromagnetic Interference

Electromagnetic Interference (EMI) refers to any electromagnetic phenomenon that occurs when voltage and current are present in a conductive medium or in the presence of an electromagnetic field, which can degrade the performance of a device, equipment, or system, and may also have adverse effects on living organisms or substances. It is mainly divided into two types: conducted interference and radiated interference. Conducted interference refers to coupling (interference) a signal from one electrical network to another through a conductive medium; while radiated interference refers to coupling (interference) a signal from the interference source to another electrical network through space.

II. Generation of Electromagnetic Interference

The generation of electromagnetic interference mainly stems from internal interference and external interference. Internal interference primarily originates from mutual interference among various components within electronic devices, such as interference caused by leakage currents generated by distributed capacitance and insulation resistance in power lines, impedance coupling among signal lines, power lines, and transmission lines, or interference caused by mutual inductance between conductors. External interference refers to factors outside electronic devices or systems that interfere with circuits, equipment, or systems, such as lightning strikes or switching operations of nearby electrical equipment.

III. Strategies for Suppressing Electromagnetic Interference


Power Filter

A power filter is a filtering circuit composed of capacitors, inductors, and resistors, mainly used to filter out specific frequency points in the power line or frequencies beyond that point, thus obtaining a power signal at a specific frequency or eliminating the power signal after a specific frequency. The main principle of a power filter is impedance matching network, which effectively attenuates electromagnetic interference by increasing impedance matching between the input and output sides of the power filter and the power and load sides. Therefore, correctly selecting and using power filters can to some extent address the electromagnetic interference issues of devices.


Coupling of External Interference (Input and Output)

Coupling of external interference mainly occurs at the input and output ends of the filter. To reduce this coupling, it is necessary to design the input and output circuits of the filter reasonably and optimize the layout and grounding method of the filter. For example, common-mode chokes or differential-mode capacitors can be added at the input end to filter out common-mode or differential-mode interference.


Switch Tubes

As important components in electronic devices, the changing operating states of switch tubes may generate electromagnetic interference. To reduce this interference, switch tubes with lower electromagnetic radiation can be selected, or the electromagnetic interference they produce can be reduced by optimizing the drive circuit and operating mode of the switch tubes.


Transformers

Transformers may generate electromagnetic interference during operation, mainly due to changes in their magnetic fields. To reduce this interference, transformers with low magnetic leakage and low noise can be selected, or the electromagnetic interference they produce can be reduced by optimizing the layout and grounding method of the transformers.


Diodes and Energy Storage Inductors

Diodes and energy storage inductors are widely used in electronic devices, but changes in their operating states may also generate electromagnetic interference. To reduce this interference, diodes and inductors with excellent electrical performance can be selected, or their electromagnetic interference can be reduced by optimizing their operating circuits and layouts.


PCB Layout and Routing

The layout and routing of PCBs have a significant impact on electromagnetic interference. To reduce electromagnetic interference, it is necessary to optimize the layout of PCBs by separating high-frequency signal lines and sensitive signal lines as much as possible to reduce coupling between them. Additionally, routing should be designed reasonably to avoid excessively long, thin, or complex traces to minimize electromagnetic radiation and crosstalk.

In conclusion, while power filters are an effective means to address equipment interference issues, it is also necessary to combine other strategies to suppress electromagnetic interference, such as optimizing the coupling of external interference, switch tubes, transformers, diodes, energy storage inductors, PCB layout, and routing. Only by comprehensively and effectively addressing equipment electromagnetic interference issues can the best interference suppression results be achieved in practical applications. It is important to select appropriate strategies based on the specific conditions of the equipment and the characteristics of the interference sources.
