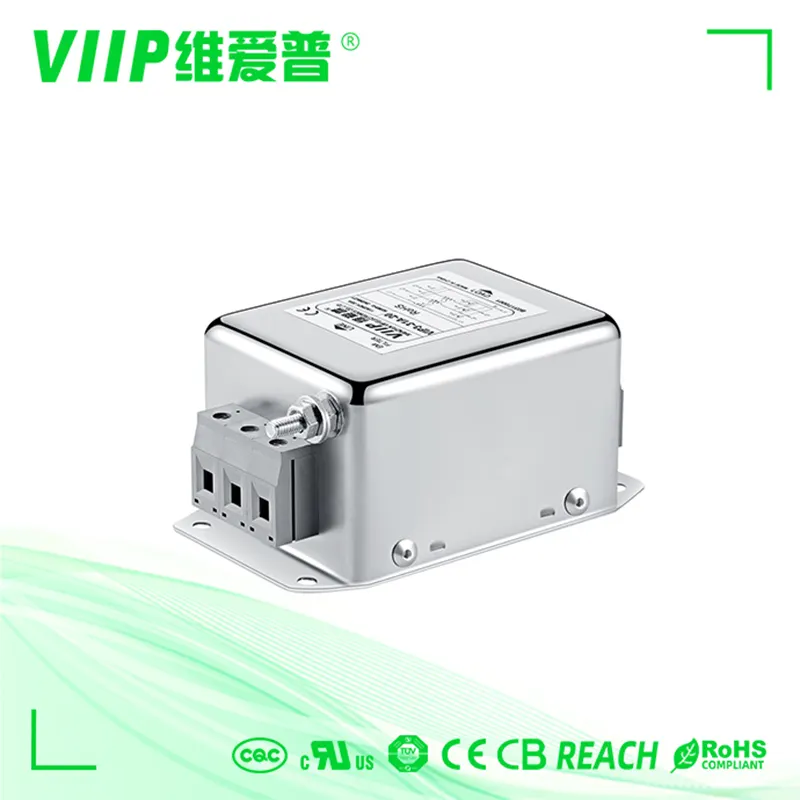

High Quality Emi Filter Single Phase

1. Customized Design, Precisely Matching Needs
The VIIP IEC socket filter adopts a customized design concept, fully considering the working environment and special requirements of indoor and outdoor displays. Whether it’s an indoor high-definition display or an outdoor large advertising screen, there is a perfectly matched filter model available. This design not only maximizes filtering effectiveness but also effectively extends the lifespan of the display and reduces maintenance costs.

2. Excellent Filtering Performance, Ensuring Pure Signals
As a professional power filter, the VIIP IEC socket filter excels in filtering performance. It can effectively filter out high-frequency noise and electromagnetic interference from the power line, providing a stable and pure power environment for displays. This pure power signal is key to ensuring accurate colors and clear images on the display, forming the foundation for an ultimate visual experience.

3. Safe and Stable, Protecting Every Visual Enjoyment
Safety and stability are another highlight of the VIIP IEC socket filter. The product is made from high-quality materials and undergoes strict quality control and safety testing to ensure stable performance even in harsh working environments. Additionally, its unique protective design effectively prevents issues such as overcurrent and overvoltage, providing comprehensive protection for displays and allowing users to enjoy visual feasts without worrying about safety concerns.

4. Environmentally Friendly and Energy-Saving, A New Choice for Green Living
In today’s society, environmental protection and energy conservation have become focal points of attention. The VIIP IEC socket filter takes this into account during its design, optimizing circuit design and material selection to achieve low energy consumption and high efficiency. This not only reduces energy waste but also lowers operational costs for users, delivering tangible economic benefits. Furthermore, it aligns with the modern society's green living philosophy, making it a new choice for users pursuing a high-quality lifestyle.

I. Basic Principles of Single-Phase Filters As the name suggests, a single-phase filter is a filter that processes a single-phase signal. Its main purpose is to allow specific frequency signals to pass through while blocking or attenuating signals of other frequencies. Specifically, it can be classified into the following types:


Low-pass filter: Only allows signals below a specific frequency to pass through, commonly used for removing high-frequency noise.
High-pass filter: Only allows signals above a specific frequency to pass through, commonly used for eliminating low-frequency interference.
Bandpass filter: Only permits signals within a specific frequency range to pass through, used for processing signals within a particular frequency band.
Bandstop filter: Blocks signals within a specific frequency range while allowing signals of other frequencies to pass through.

II. Types and Characteristics of Single-Phase Filters Based on their structure and operating principles, single-phase filters can be divided into several types, each with its unique characteristics:


Passive Filters: Comprising components like resistors, capacitors, and inductors, these filters do not require an external power source, operate stably, but may have limitations in frequency response.
Active Filters: Besides passive components, these filters include active elements like amplifiers, allowing for more complex frequency response characteristics but needing an external power source.
Digital Filters: Utilizing digital technology for filtering, these filters require digital signal processors or microprocessors to operate, enabling highly sophisticated filtering properties but may have issues like latency.

III. Applications of Single-Phase Filters Due to their unique functionalities, single-phase filters find widespread applications across various fields:


Communication Systems: Filters help eliminate unwanted frequencies in communication, ensuring clear signal transmission.
Audio Processing: In sound systems or music production, filters can adjust specific frequency components of audio signals to achieve desired sound effects.
Industrial Automation: Filters are widely used in sensor signal processing, noise reduction, and other industrial automation applications.
Medical Field: In medical imaging or biological signal processing, filters can enhance signal quality.

IV. Importance of Single-Phase Filters in Everyday Life While we may not always be aware, single-phase filters are omnipresent in our daily lives. From smartphones and TVs to household appliances, almost all electronic devices rely on filters to ensure their proper functioning. Without filters, we might experience noise interference leading to communication disruptions or degraded device performance. Therefore, understanding the basic principles and applications of single-phase filters is highly beneficial for anyone interested in electronics technology.

Conclusion: Single-phase filters constitute a fundamental aspect of electronic engineering, underscoring their undeniable importance. Whether you are an electronic engineer or merely an enthusiast interested in electronics, understanding the basics of this field is crucial. We hope this article provides you with a comprehensive perspective, helping you better comprehend the intricacies of single-phase filters.

Shenzhen VIIP Electronics Co., Ltd. is an EMC service provider primarily engaged in the research, production, and sales of EMC anti-interference components. The company's main products include power filters, EMI anti-interference ferrite cores, amorphous magnetic ring inductance series, and EMC shielding materials.

At VIIP Filter, we recently had the opportunity to assist a customer with their vending machine project, helping them to achieve UL certification. This case study showcases our efforts in providing EMI power filters and technical expertise to overcome EMC issues and successfully pass laboratory testing.

Project Description:

The vending machine initially faced challenges in passing UL certification due to electromagnetic compatibility (EMC) issues. Our engineering team intervened by implementing various solutions to address the problem and ensure compliance with industry standards.

First Attempt: Installing VIIP Filter EMI Power Filters

In the first attempt to mitigate the EMC issues, we installed four of our 20A single-phase filters in the vending machine. Despite this intervention, the certification was still not achieved, prompting us to explore additional solutions.

Second Attempt: Adding Ferrite Core Rings

To further improve EMC performance, our engineer onsite added two ferrite core rings (magnetic toroids) to the vending machine. While this adjustment helped reduce margin issues, there was still a small residual offset that needed to be addressed.

Upgraded Filters and Ferrite Rings

Following the feedback from the laboratory testing, our engineering team decided to upgrade the previous single-phase filters and reintroduce the ferrite rings. With these improvements in place, the vending machine underwent EMC tests once again, and this time, it successfully passed the certification requirements.

The Role of VIIP Filter EMI Power Filters:

VIIP Filter's EMI power filters played a crucial role in improving the vending machine's EMC performance. By providing reliable filtering solutions, we helped our customer enhance the machine's electromagnetic compatibility, ensuring compliance with UL certification standards.

Technical Expertise and Onsite Support:

In addition to supplying EMI power filters, our engineering team offered valuable technical expertise and onsite support throughout the certification process. By closely collaborating with the customer and addressing specific EMC challenges, we were able to identify the root cause of the issue and implement effective solutions.

The successful outcome of this project highlights VIIP Filter's commitment to quality, innovation, and customer satisfaction. By leveraging our EMI power filters and technical knowledge, we were able to assist our customer in overcoming EMC issues and achieving UL certification for their vending machine. This case study exemplifies our dedication to providing reliable filtering solutions and personalized support to meet our clients' unique requirements.
