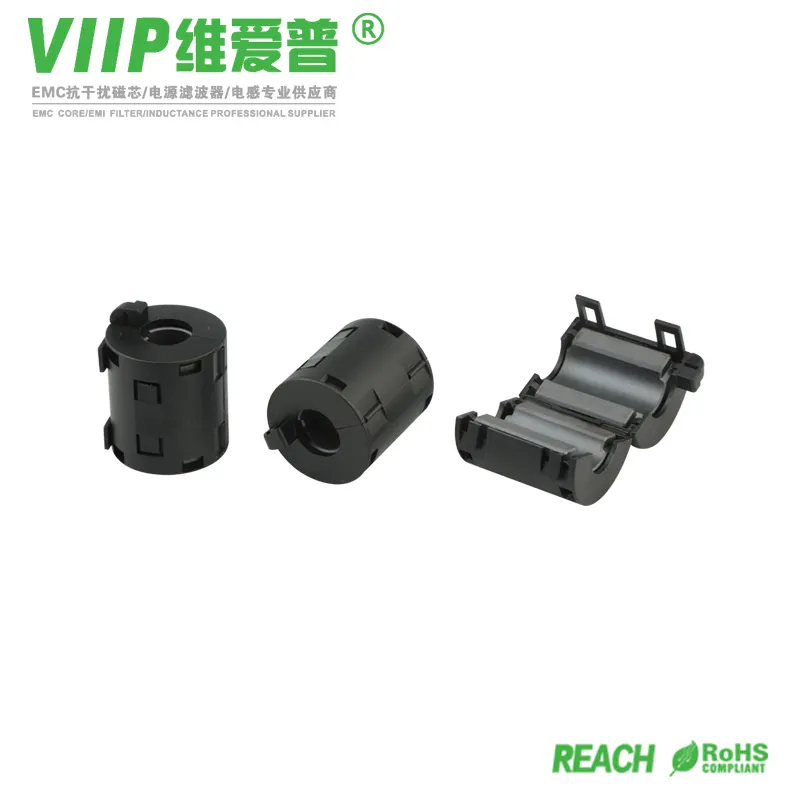

Ferrite Clip on Rfi Filter

In the development and testing of computer hardware, EMC magnetic rods can simulate various electromagnetic radiation scenarios, including static fields, magnetic fields, electric fields, etc. By placing the magnetic rod close to computer hardware, developers can test the hardware's radiation and sensitivity performance in different electromagnetic environments. This is crucial for ensuring the normal operation of computer hardware in real-world environments, especially in scenarios with significant electromagnetic interference, such as industrial automation environments and military systems.

In the development and testing of computer software, EMC magnetic rods can simulate interference signals in different electromagnetic environments. Developers can connect the magnetic rod to the computer system and introduce various interference signals to test the software's resistance to interference. This is vital for testing the robustness and stability of software, especially when computer systems face various electromagnetic interferences in real-life situations.

Apart from hardware and software development and testing, EMC magnetic rods also play a crucial role in computer maintenance and troubleshooting. When a computer malfunctions, it is often challenging to determine whether it is a hardware, software, or electromagnetic interference issue. By using EMC magnetic rods, technicians can expose the computer to different electromagnetic environments to determine whether the fault is due to hardware, software, or electromagnetic interference.





In conclusion, EMC magnetic rods are extensively applied in the computer field, helping developers ensure that computer hardware and software operate normally in various electromagnetic environments. They also assist technicians in troubleshooting computer faults, playing a key role in enhancing the reliability and stability of computer systems, which is crucial for ensuring the security and reliable operation of computer systems. Therefore, EMC magnetic rods are indispensable tools in the computer industry.

Shenzhen VIIP Electronic Co., Ltd. is an electromagnetic compatibility service provider primarily engaged in the research, production, and sale of EMC anti-interference components. Its main products include power filters, EMI anti-interference magnetic cores, amorphous magnetic ring inductor series, and EMC shielding materials. The company has a production base for anti-interference magnetic cores and a fully automated magnetic material production testing line. There are over 300 specifications and models of anti-interference magnetic core products to meet various product requirements.

I. Impact of Magnetic Ring Material on EMC Performance


Permeability and EMC Performance The permeability of the magnetic ring material is a critical parameter in measuring its interference suppression capability. A higher permeability indicates a stronger ability to suppress interference. Therefore, selecting a magnetic ring material with high permeability can enhance the EMC performance of equipment.
Frequency Characteristics and EMC Performance Different interference frequencies require different magnetic ring materials for suppression. Low-frequency interference can use materials with lower frequency characteristics, such as ferrites; while high-frequency interference requires materials with higher frequency characteristics, like nickel-zinc ferrites and nickel ferrites.
Temperature Coefficient and EMC Performance The permeability of certain magnetic ring materials may vary with temperature changes, which could negatively impact the EMC performance of equipment. Therefore, when selecting magnetic ring materials, consideration should be given to their temperature coefficient to ensure stable EMC performance within the operating temperature range

II. Selecting the Right Magnetic Ring Material For different EMC issues and system requirements, the selection of appropriate magnetic ring materials is essential. Firstly, choose a material with suitable permeability and frequency characteristics based on the interference sources and frequency range of the equipment. Secondly, consider the material's temperature coefficient, mechanical strength, corrosion resistance, and other physical and chemical properties to ensure stable operation in specific environments and working conditions. Finally, through actual testing and validation, choose the most suitable magnetic ring material to enhance the EMC performance of equipment.

III. Conclusion In the design and manufacturing of electronic devices, selecting the right magnetic ring material is crucial for improving EMC performance. By understanding the characteristics of different magnetic ring materials and choosing materials with appropriate permeability and frequency characteristics according to actual needs, electromagnetic interference can be effectively suppressed, enhancing the EMC performance of equipment. Additionally, considerations for temperature coefficient, mechanical strength, corrosion resistance, and other factors are necessary to ensure stable operation in complex environmental conditions.

Shenzhen VIIP Electronics Co., Ltd. is an EMC service provider primarily engaged in the research, production, and sales of EMC anti-interference components. The main products include power filters, EMI anti-interference magnetic cores, amorphous magnetic ring inductance series, and EMC shielding materials. With a production base for anti-interference magnetic cores and fully automatic magnetic material production testing lines, the company offers over 300 specification models of anti-interference magnetic cores to meet the diverse needs of different products.

Composition and influencing factors of magnetic ring weight The weight of a magnetic ring mainly comes from its internal magnetic material, insulation material, and additives used in the manufacturing process. The selection and proportion of these materials directly determine the weight and performance of the magnetic ring. For instance, the type and purity of the magnetic material, the thickness and texture of the insulation material, as well as the type and quantity of additives, all affect the weight of the magnetic ring. Additionally, the manufacturing process of the magnetic ring also influences its weight. A precise manufacturing process can ensure uniform material distribution inside the magnetic ring, reducing unnecessary weight and enhancing its performance.

2．Specific impact of weight on the performance of magnetic rings

Relationship between weight and permeability Permeability is an important indicator of magnetic ring performance. Generally, a magnetic ring with higher permeability tends to have better performance. However, this does not mean that a heavier magnetic ring will always have higher permeability. Permeability is influenced by various factors, including the type of magnetic material, purity, and manufacturing processes. Therefore, when selecting a magnetic ring, one should not solely rely on weight to determine its permeability.


Relationship between weight and heat dissipation performance During operation, magnetic rings generate heat. If this heat is not dissipated effectively, it can lead to an increase in temperature, affecting the performance of the magnetic ring. Heavier magnetic rings often have better heat dissipation performance as they can accommodate more heat-dissipating materials, effectively dissipating heat. Therefore, in electronic devices that require prolonged operation, choosing a moderately weighted magnetic ring can ensure good heat dissipation performance.

Relationship between weight and stability The stability of a magnetic ring refers to its ability to maintain stable electromagnetic performance during operation. Heavier magnetic rings often exhibit better stability as they can withstand more external interference and vibrations. This is particularly crucial for electronic devices requiring high stability.

How to evaluate the performance of magnetic rings rationally When selecting a magnetic ring, users should not solely judge its performance based on weight. Instead, they should consider multiple factors, including material, permeability, heat dissipation performance, stability, etc. Moreover, it is essential to consider specific application scenarios and requirements when choosing the appropriate magnetic ring.

The relationship between the performance and weight of magnetic rings is subtle and complex. Weight can serve as a reference factor for evaluating the performance of magnetic rings, but it is not the sole criterion. When selecting a magnetic ring, users should consider multiple factors, balance them, and make a choice based on actual needs. By scientifically and reasonably selecting magnetic rings, electronic devices can ensure better electromagnetic compatibility and performance stability.

I. Basic Principles of Single-Phase Filters As the name suggests, a single-phase filter is a filter that processes a single-phase signal. Its main purpose is to allow specific frequency signals to pass through while blocking or attenuating signals of other frequencies. Specifically, it can be classified into the following types:


Low-pass filter: Only allows signals below a specific frequency to pass through, commonly used for removing high-frequency noise.
High-pass filter: Only allows signals above a specific frequency to pass through, commonly used for eliminating low-frequency interference.
Bandpass filter: Only permits signals within a specific frequency range to pass through, used for processing signals within a particular frequency band.
Bandstop filter: Blocks signals within a specific frequency range while allowing signals of other frequencies to pass through.

II. Types and Characteristics of Single-Phase Filters Based on their structure and operating principles, single-phase filters can be divided into several types, each with its unique characteristics:


Passive Filters: Comprising components like resistors, capacitors, and inductors, these filters do not require an external power source, operate stably, but may have limitations in frequency response.
Active Filters: Besides passive components, these filters include active elements like amplifiers, allowing for more complex frequency response characteristics but needing an external power source.
Digital Filters: Utilizing digital technology for filtering, these filters require digital signal processors or microprocessors to operate, enabling highly sophisticated filtering properties but may have issues like latency.

III. Applications of Single-Phase Filters Due to their unique functionalities, single-phase filters find widespread applications across various fields:


Communication Systems: Filters help eliminate unwanted frequencies in communication, ensuring clear signal transmission.
Audio Processing: In sound systems or music production, filters can adjust specific frequency components of audio signals to achieve desired sound effects.
Industrial Automation: Filters are widely used in sensor signal processing, noise reduction, and other industrial automation applications.
Medical Field: In medical imaging or biological signal processing, filters can enhance signal quality.

IV. Importance of Single-Phase Filters in Everyday Life While we may not always be aware, single-phase filters are omnipresent in our daily lives. From smartphones and TVs to household appliances, almost all electronic devices rely on filters to ensure their proper functioning. Without filters, we might experience noise interference leading to communication disruptions or degraded device performance. Therefore, understanding the basic principles and applications of single-phase filters is highly beneficial for anyone interested in electronics technology.

Conclusion: Single-phase filters constitute a fundamental aspect of electronic engineering, underscoring their undeniable importance. Whether you are an electronic engineer or merely an enthusiast interested in electronics, understanding the basics of this field is crucial. We hope this article provides you with a comprehensive perspective, helping you better comprehend the intricacies of single-phase filters.

Shenzhen VIIP Electronics Co., Ltd. is an EMC service provider primarily engaged in the research, production, and sales of EMC anti-interference components. The company's main products include power filters, EMI anti-interference ferrite cores, amorphous magnetic ring inductance series, and EMC shielding materials.

I. Definition of Electromagnetic Interference

Electromagnetic Interference (EMI) refers to any electromagnetic phenomenon that occurs when voltage and current are present in a conductive medium or in the presence of an electromagnetic field, which can degrade the performance of a device, equipment, or system, and may also have adverse effects on living organisms or substances. It is mainly divided into two types: conducted interference and radiated interference. Conducted interference refers to coupling (interference) a signal from one electrical network to another through a conductive medium; while radiated interference refers to coupling (interference) a signal from the interference source to another electrical network through space.

II. Generation of Electromagnetic Interference

The generation of electromagnetic interference mainly stems from internal interference and external interference. Internal interference primarily originates from mutual interference among various components within electronic devices, such as interference caused by leakage currents generated by distributed capacitance and insulation resistance in power lines, impedance coupling among signal lines, power lines, and transmission lines, or interference caused by mutual inductance between conductors. External interference refers to factors outside electronic devices or systems that interfere with circuits, equipment, or systems, such as lightning strikes or switching operations of nearby electrical equipment.

III. Strategies for Suppressing Electromagnetic Interference


Power Filter

A power filter is a filtering circuit composed of capacitors, inductors, and resistors, mainly used to filter out specific frequency points in the power line or frequencies beyond that point, thus obtaining a power signal at a specific frequency or eliminating the power signal after a specific frequency. The main principle of a power filter is impedance matching network, which effectively attenuates electromagnetic interference by increasing impedance matching between the input and output sides of the power filter and the power and load sides. Therefore, correctly selecting and using power filters can to some extent address the electromagnetic interference issues of devices.


Coupling of External Interference (Input and Output)

Coupling of external interference mainly occurs at the input and output ends of the filter. To reduce this coupling, it is necessary to design the input and output circuits of the filter reasonably and optimize the layout and grounding method of the filter. For example, common-mode chokes or differential-mode capacitors can be added at the input end to filter out common-mode or differential-mode interference.


Switch Tubes

As important components in electronic devices, the changing operating states of switch tubes may generate electromagnetic interference. To reduce this interference, switch tubes with lower electromagnetic radiation can be selected, or the electromagnetic interference they produce can be reduced by optimizing the drive circuit and operating mode of the switch tubes.


Transformers

Transformers may generate electromagnetic interference during operation, mainly due to changes in their magnetic fields. To reduce this interference, transformers with low magnetic leakage and low noise can be selected, or the electromagnetic interference they produce can be reduced by optimizing the layout and grounding method of the transformers.


Diodes and Energy Storage Inductors

Diodes and energy storage inductors are widely used in electronic devices, but changes in their operating states may also generate electromagnetic interference. To reduce this interference, diodes and inductors with excellent electrical performance can be selected, or their electromagnetic interference can be reduced by optimizing their operating circuits and layouts.


PCB Layout and Routing

The layout and routing of PCBs have a significant impact on electromagnetic interference. To reduce electromagnetic interference, it is necessary to optimize the layout of PCBs by separating high-frequency signal lines and sensitive signal lines as much as possible to reduce coupling between them. Additionally, routing should be designed reasonably to avoid excessively long, thin, or complex traces to minimize electromagnetic radiation and crosstalk.

In conclusion, while power filters are an effective means to address equipment interference issues, it is also necessary to combine other strategies to suppress electromagnetic interference, such as optimizing the coupling of external interference, switch tubes, transformers, diodes, energy storage inductors, PCB layout, and routing. Only by comprehensively and effectively addressing equipment electromagnetic interference issues can the best interference suppression results be achieved in practical applications. It is important to select appropriate strategies based on the specific conditions of the equipment and the characteristics of the interference sources.
