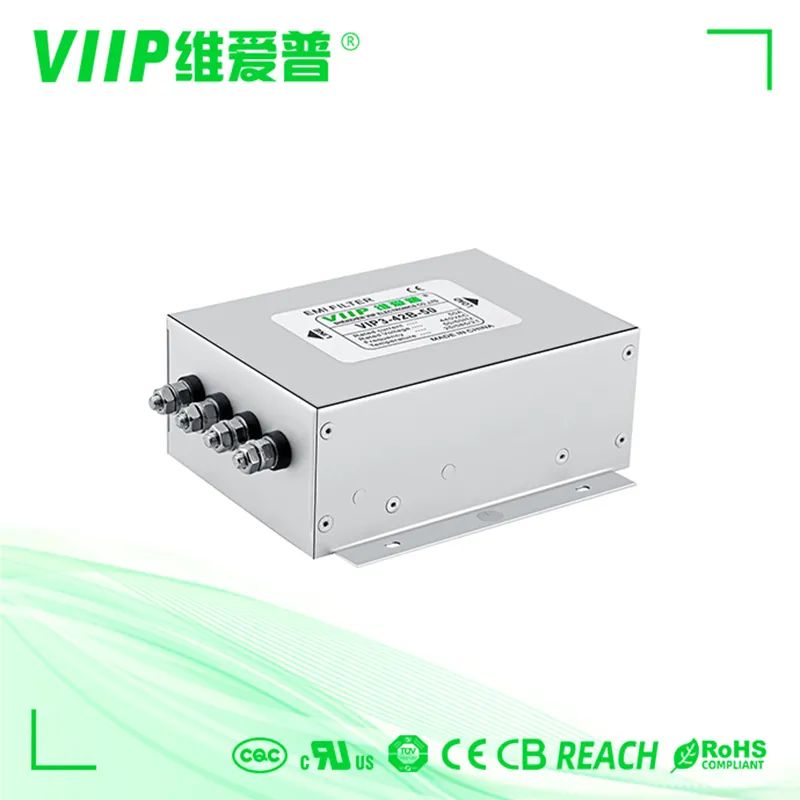

Buy Emi Filter for Vfd From VIIP Filter

Our company anti-interference magnetic core production, the international advanced automatic magnetic material production testing line. EMI FERRITE CORE products a total of more than 300 kinds of specifications models to meet the needs of different products. All products are in line with ROHS, REACH environmental requirements. Most of the products are exported to Europe, America, Japan and South Korea, Southeast Asia and other countries and regions.

EMI FILTER products are in line with CQC, UL, VDE, CE and other safety certification requirements. Products into a comprehensive ROHS, REACH environmental requirements. Product specifications complete, the current from 0.1A-3000A. There are a variety of different installation and connection for customers to choose, accepting custom design according to the customers’ special requirements.

Innovation affects the future! We warmly welcome you to contact us and common progress for a better tomorrow!

Specifically, it can be classified into the following types:


Low-pass filter: Only allows signals below a specific frequency to pass through, commonly used for removing high-frequency noise.
High-pass filter: Only allows signals above a specific frequency to pass through, commonly used for eliminating low-frequency interference.
Bandpass filter: Only permits signals within a specific frequency range to pass through, used for processing signals within a particular frequency band.
Bandstop filter: Blocks signals within a specific frequency range while allowing signals of other frequencies to pass through.

II. Types and Characteristics of Single-Phase Filters Based on their structure and operating principles, single-phase filters can be divided into several types, each with its unique characteristics:


Passive Filters: Comprising components like resistors, capacitors, and inductors, these filters do not require an external power source, operate stably, but may have limitations in frequency response.
Active Filters: Besides passive components, these filters include active elements like amplifiers, allowing for more complex frequency response characteristics but needing an external power source.
Digital Filters: Utilizing digital technology for filtering, these filters require digital signal processors or microprocessors to operate, enabling highly sophisticated filtering properties but may have issues like latency.

III. Applications of Single-Phase Filters Due to their unique functionalities, single-phase filters find widespread applications across various fields:


Communication Systems: Filters help eliminate unwanted frequencies in communication, ensuring clear signal transmission.
Audio Processing: In sound systems or music production, filters can adjust specific frequency components of audio signals to achieve desired sound effects.
Industrial Automation: Filters are widely used in sensor signal processing, noise reduction, and other industrial automation applications.
Medical Field: In medical imaging or biological signal processing, filters can enhance signal quality.

IV. Importance of Single-Phase Filters in Everyday Life While we may not always be aware, single-phase filters are omnipresent in our daily lives. From smartphones and TVs to household appliances, almost all electronic devices rely on filters to ensure their proper functioning. Without filters, we might experience noise interference leading to communication disruptions or degraded device performance. Therefore, understanding the basic principles and applications of single-phase filters is highly beneficial for anyone interested in electronics technology.

Conclusion: Single-phase filters constitute a fundamental aspect of electronic engineering, underscoring their undeniable importance. Whether you are an electronic engineer or merely an enthusiast interested in electronics, understanding the basics of this field is crucial. We hope this article provides you with a comprehensive perspective, helping you better comprehend the intricacies of single-phase filters.

Shenzhen VIIP Electronics Co., Ltd. is an EMC service provider primarily engaged in the research, production, and sales of EMC anti-interference components. The company's main products include power filters, EMI anti-interference ferrite cores, amorphous magnetic ring inductance series, and EMC shielding materials.

I. Definition of Electromagnetic Interference

Electromagnetic Interference (EMI) refers to any electromagnetic phenomenon that occurs when voltage and current are present in a conductive medium or in the presence of an electromagnetic field, which can degrade the performance of a device, equipment, or system, and may also have adverse effects on living organisms or substances. It is mainly divided into two types: conducted interference and radiated interference. Conducted interference refers to coupling (interference) a signal from one electrical network to another through a conductive medium; while radiated interference refers to coupling (interference) a signal from the interference source to another electrical network through space.

II. Generation of Electromagnetic Interference

The generation of electromagnetic interference mainly stems from internal interference and external interference. Internal interference primarily originates from mutual interference among various components within electronic devices, such as interference caused by leakage currents generated by distributed capacitance and insulation resistance in power lines, impedance coupling among signal lines, power lines, and transmission lines, or interference caused by mutual inductance between conductors. External interference refers to factors outside electronic devices or systems that interfere with circuits, equipment, or systems, such as lightning strikes or switching operations of nearby electrical equipment.

III. Strategies for Suppressing Electromagnetic Interference


Power Filter

A power filter is a filtering circuit composed of capacitors, inductors, and resistors, mainly used to filter out specific frequency points in the power line or frequencies beyond that point, thus obtaining a power signal at a specific frequency or eliminating the power signal after a specific frequency. The main principle of a power filter is impedance matching network, which effectively attenuates electromagnetic interference by increasing impedance matching between the input and output sides of the power filter and the power and load sides. Therefore, correctly selecting and using power filters can to some extent address the electromagnetic interference issues of devices.


Coupling of External Interference (Input and Output)

Coupling of external interference mainly occurs at the input and output ends of the filter. To reduce this coupling, it is necessary to design the input and output circuits of the filter reasonably and optimize the layout and grounding method of the filter. For example, common-mode chokes or differential-mode capacitors can be added at the input end to filter out common-mode or differential-mode interference.


Switch Tubes

As important components in electronic devices, the changing operating states of switch tubes may generate electromagnetic interference. To reduce this interference, switch tubes with lower electromagnetic radiation can be selected, or the electromagnetic interference they produce can be reduced by optimizing the drive circuit and operating mode of the switch tubes.


Transformers

Transformers may generate electromagnetic interference during operation, mainly due to changes in their magnetic fields. To reduce this interference, transformers with low magnetic leakage and low noise can be selected, or the electromagnetic interference they produce can be reduced by optimizing the layout and grounding method of the transformers.


Diodes and Energy Storage Inductors

Diodes and energy storage inductors are widely used in electronic devices, but changes in their operating states may also generate electromagnetic interference. To reduce this interference, diodes and inductors with excellent electrical performance can be selected, or their electromagnetic interference can be reduced by optimizing their operating circuits and layouts.


PCB Layout and Routing

The layout and routing of PCBs have a significant impact on electromagnetic interference. To reduce electromagnetic interference, it is necessary to optimize the layout of PCBs by separating high-frequency signal lines and sensitive signal lines as much as possible to reduce coupling between them. Additionally, routing should be designed reasonably to avoid excessively long, thin, or complex traces to minimize electromagnetic radiation and crosstalk.

In conclusion, while power filters are an effective means to address equipment interference issues, it is also necessary to combine other strategies to suppress electromagnetic interference, such as optimizing the coupling of external interference, switch tubes, transformers, diodes, energy storage inductors, PCB layout, and routing. Only by comprehensively and effectively addressing equipment electromagnetic interference issues can the best interference suppression results be achieved in practical applications. It is important to select appropriate strategies based on the specific conditions of the equipment and the characteristics of the interference sources.

[Filter News] The Global Acoustic Filter Market to Experience Rapid Growth from 2024 to 2033

According to the latest market research report, the global acoustic filter market is set to witness significant growth from 2024 to 2033, with the market size expected to expand from the current 11.74billionto11.74billionto29.71 billion, resulting in a total market increment of $17.97 billion. This robust growth momentum is primarily attributed to the continuous expansion of telecommunications infrastructure worldwide, the proliferation of wireless communication technology, and the booming automobile industry.

In the acoustic filter market, the BAW (Bulk Acoustic Wave) filter holds the largest market share due to its significant advantages of efficient heat dissipation and miniaturization. With the rapid iteration of mobile communication technology and the widespread adoption of smart terminal devices, BAW filters have become the preferred solution in the industry, particularly exhibiting immense market potential in sectors such as smartphones and the Internet of Things (IoT).

Moreover, lithium niobate materials have also shown remarkable performance in the segmented market of acoustic filters. As one of the key materials, lithium niobate plays an irreplaceable role in optoelectronic devices and high-speed communication systems, thanks to its excellent piezoelectric, electro-optical, acousto-optical, and nonlinear optical properties. With the ongoing expansion of the global high-speed optical module market, the market demand for lithium niobate materials and related devices is expected to experience explosive growth, further propelling the development of the acoustic filter market.

Overall, the global acoustic filter market is on a fast track of growth, with a significant leap in scale anticipated over the next decade. As technology continues to advance and the market expands, acoustic filters will showcase their unique value in more fields, injecting new vitality into the entire electronic component industry.
