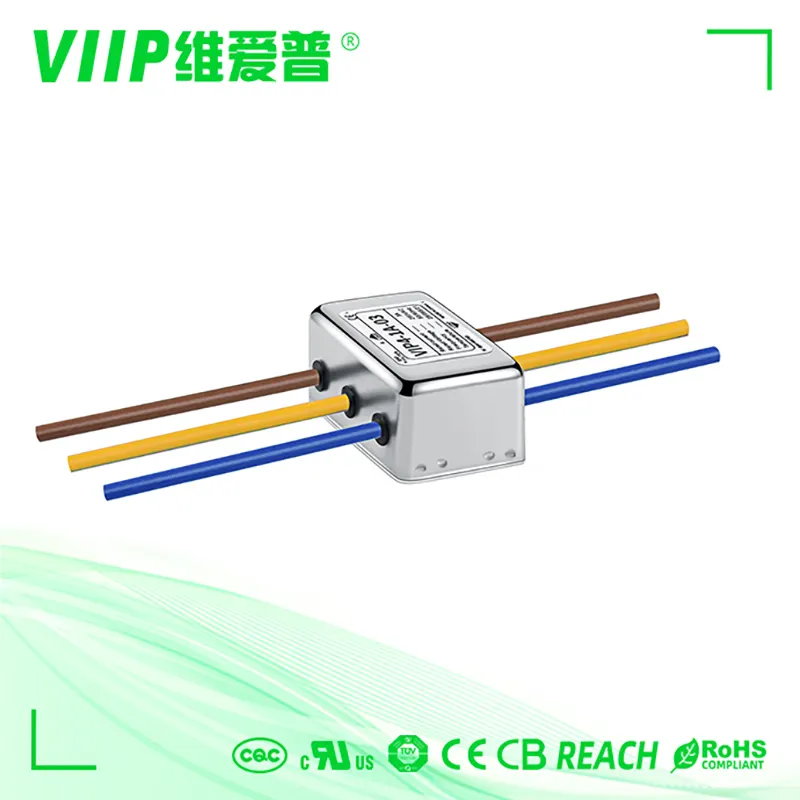

Buy Emi Filter for Power Supply From VIIP Filter

In the development and testing of computer hardware, EMC magnetic rods can simulate various electromagnetic radiation scenarios, including static fields, magnetic fields, electric fields, etc. By placing the magnetic rod close to computer hardware, developers can test the hardware's radiation and sensitivity performance in different electromagnetic environments. This is crucial for ensuring the normal operation of computer hardware in real-world environments, especially in scenarios with significant electromagnetic interference, such as industrial automation environments and military systems.

In the development and testing of computer software, EMC magnetic rods can simulate interference signals in different electromagnetic environments. Developers can connect the magnetic rod to the computer system and introduce various interference signals to test the software's resistance to interference. This is vital for testing the robustness and stability of software, especially when computer systems face various electromagnetic interferences in real-life situations.

Apart from hardware and software development and testing, EMC magnetic rods also play a crucial role in computer maintenance and troubleshooting. When a computer malfunctions, it is often challenging to determine whether it is a hardware, software, or electromagnetic interference issue. By using EMC magnetic rods, technicians can expose the computer to different electromagnetic environments to determine whether the fault is due to hardware, software, or electromagnetic interference.





In conclusion, EMC magnetic rods are extensively applied in the computer field, helping developers ensure that computer hardware and software operate normally in various electromagnetic environments. They also assist technicians in troubleshooting computer faults, playing a key role in enhancing the reliability and stability of computer systems, which is crucial for ensuring the security and reliable operation of computer systems. Therefore, EMC magnetic rods are indispensable tools in the computer industry.

Shenzhen VIIP Electronic Co., Ltd. is an electromagnetic compatibility service provider primarily engaged in the research, production, and sale of EMC anti-interference components. Its main products include power filters, EMI anti-interference magnetic cores, amorphous magnetic ring inductor series, and EMC shielding materials. The company has a production base for anti-interference magnetic cores and a fully automated magnetic material production testing line. There are over 300 specifications and models of anti-interference magnetic core products to meet various product requirements.

EMC filters, short for electromagnetic compatibility filters, are devices specifically designed to suppress electromagnetic interference (EMI) generated by electronic devices. Their core function is to ensure that devices can operate normally in complex electromagnetic environments while not causing unacceptable electromagnetic disturbance to the surrounding environment. This characteristic makes EMC filters key components in safeguarding the electromagnetic compatibility of electronic devices.

The working principle of VIIP ELECTRONICS EMC filters is based on electromagnetic induction and capacitive coupling principles. They typically consist of inductors, capacitors, and impedance networks, among other components. Through a carefully designed circuit structure, they filter and attenuate interference signals in the circuit. When electromagnetic signals pass through the filter, the filter, based on its internal circuit design, eliminates signals that do not meet the required standards, effectively screening and filtering the electromagnetic signals. This filtering process not only effectively suppresses the transmission of unwanted interference signals but also ensures the normal operation of the device and prevents impact on other devices.

The role of EMC filters is particularly significant in industrial applications. Industrial equipment often has numerous sources of electromagnetic interference, such as variable frequency drives and motors, which produce strong electromagnetic radiation during operation, interfering with surrounding control systems and sensitive devices. By installing EMC filters at the power input and signal lines, these interference signals can be effectively suppressed, improving the stability and reliability of the system. Additionally, in power electronic devices such as inverters and chargers, EMC filters can also effectively reduce radiation and conducted interference, enhancing the electromagnetic compatibility of the products.

In the field of communication equipment, VIIP ELECTRONICS EMC filters also play an important role. Wireless communication devices and base stations must contend with complex electromagnetic environments during operation, and they themselves can also generate strong electromagnetic radiation. By appropriately configuring signal line filters and power line filters, the anti-interference capability of communication devices can be improved, enhancing communication quality and coverage. This is of significant importance for ensuring the stability and reliability of communication networks.

Choosing the right EMC filter requires consideration of multiple factors. First, it is essential to understand the electromagnetic compatibility requirements of the device and determine the type and parameters of the required filter based on the specific circumstances of the device. Secondly, the characteristics of the working environment, such as temperature, humidity, and altitude, should be taken into account, as these factors can affect the performance of the filter. Finally, attention should be paid to the performance parameters of the filter, such as insertion loss, impedance matching, and frequency range, to ensure that the selected filter meets the actual needs of the device.

In summary, VIIP ELECTRONICS EMC filters serve as guardians of electromagnetic compatibility for electronic devices, playing an irreplaceable role in ensuring normal operation and avoiding electromagnetic interference. By making informed choices and configurations of EMC filters, we can enhance the electromagnetic compatibility of electronic devices, thereby promoting further advancements in electronic technology.

So, how can the performance of power filters be tested?


Leakage Current

Leakage current refers to the current flowing between the phase line, neutral line, and the filter casing (ground line) under a voltage of 250VAC. It primarily depends on the value of the ground capacitor (common mode capacitor). A larger common mode capacitor CY can improve insertion loss but may result in higher leakage current.


Withstand Voltage

To ensure the performance of the power filter, as well as the safety of equipment and personnel, withstand voltage testing must be conducted. Withstand voltage testing is performed under extreme operating conditions. If the withstand voltage performance of the CX capacitor is poor, it may break down when peak surge voltage occurs. While its breakdown may not endanger personal safety, it can cause the filter to lose functionality or performance.


Performance Evaluation

When using EMI power filters, the most important considerations are the rated voltage and current values, withstand voltage performance, and leakage current. The primary performance evaluation of a filter is its insertion loss performance.

The ability of an EMI power filter to suppress interference noise is measured using Insertion Loss (I.L.). Insertion loss is defined as the ratio of the power P1 transmitted from the noise source to the load without the filter connected to the power P2 transmitted from the noise source to the load with the filter connected, expressed in decibels (dB).


Standard Insertion Loss Testing
Load Insertion Loss Testing
Time Domain Testing for EMI Filters


Design of an Automatic Insertion Loss Testing System for EMI Filters

As EMC testing becomes more complex and the workload increases, the requirements for testing equipment in terms of functionality, performance, testing speed, and accuracy are also rising. Traditional manual testing is increasingly unable to meet these requirements. National standards (GB) and national military standards (GJB) both require EMC testing to be automated, with strict requirements for data post-processing. Therefore, the development of EMC automatic testing has become essential. The automatic testing system established in this article utilizes virtual instrument technology and is based on a signal source and spectrum analyzer to test the insertion loss of EMI power filters.

Challenge:
The device initially failed initial EMC tests due to electromagnetic interference (EMI) issues, which posed risks of malfunction and non-compliance. The challenge was to enhance the device’s EMI performance without significantly altering its design or increasing costs.

Solution:
Our team conducted a comprehensive EMC analysis to identify the primary sources of interference. Based on our findings, we recommended integrating our high-performance filters and magnetic rings into the device design.


Filters: We supplied custom-designed filters to suppress conducted EMI effectively.
Magnetic Rings: We incorporated magnetic rings to mitigate radiated emissions and improve overall electromagnetic immunity.

Implementation:
The filters and magnetic rings were seamlessly integrated into the device’s power and signal lines by the client’s engineering team, following our detailed guidance and specifications.

Results:
Following the modifications, the device underwent a second round of EMC testing, which it successfully passed. This achievement was confirmed by certification authorities, and the device obtained all necessary compliance certificates, paving the way for market entry.

Summary:
Our tailored EMC solutions, combining advanced filtering components and magnetic rings, significantly enhanced the electromagnetic compatibility of the medical device, ensuring safety, compliance, and performance. This case exemplifies our expertise in supporting medical clients through complex EMC challenges to achieve certification success.

Power filters are essential components in electronic devices, with the main function of filtering the input power signal to remove noise and other interference, providing a stable and smooth direct current or alternating current voltage to ensure the normal operation of electronic devices. Power filters are widely used in electronic products, especially in high-end electronic products that require signal stability, reliability, and safety.

In addition to the main functions and roles mentioned above, power filters can also serve the following purposes:


Filter out high-frequency noise in the input power, reduce interference to the system, and minimize electromagnetic radiation.
Prevent transient changes in the power supply circuit to avoid impacting the system.
Avoid sudden surges in the power line to enhance system reliability and stability.

So, how can the performance of power filters be tested?


Leakage Current

Leakage current refers to the current flowing between the phase line, neutral line, and the filter casing (ground line) under a voltage of 250VAC. It primarily depends on the value of the ground capacitor (common mode capacitor). A larger common mode capacitor CY can improve insertion loss but may result in higher leakage current.


Withstand Voltage

To ensure the performance of the power filter, as well as the safety of equipment and personnel, withstand voltage testing must be conducted. Withstand voltage testing is performed under extreme operating conditions. If the withstand voltage performance of the CX capacitor is poor, it may break down when peak surge voltage occurs. While its breakdown may not endanger personal safety, it can cause the filter to lose functionality or performance.


Performance Evaluation

When using EMI power filters, the most important considerations are the rated voltage and current values, withstand voltage performance, and leakage current. The primary performance evaluation of a filter is its insertion loss performance.

The ability of an EMI power filter to suppress interference noise is measured using Insertion Loss (I.L.). Insertion loss is defined as the ratio of the power P1 transmitted from the noise source to the load without the filter connected to the power P2 transmitted from the noise source to the load with the filter connected, expressed in decibels (dB).


Standard Insertion Loss Testing
Load Insertion Loss Testing
Time Domain Testing for EMI Filters


Design of an Automatic Insertion Loss Testing System for EMI Filters

As EMC testing becomes more complex and the workload increases, the requirements for testing equipment in terms of functionality, performance, testing speed, and accuracy are also rising. Traditional manual testing is increasingly unable to meet these requirements. National standards (GB) and national military standards (GJB) both require EMC testing to be automated, with strict requirements for data post-processing. Therefore, the development of EMC automatic testing has become essential. The automatic testing system established in this article utilizes virtual instrument technology and is based on a signal source and spectrum analyzer to test the insertion loss of EMI power filters.
