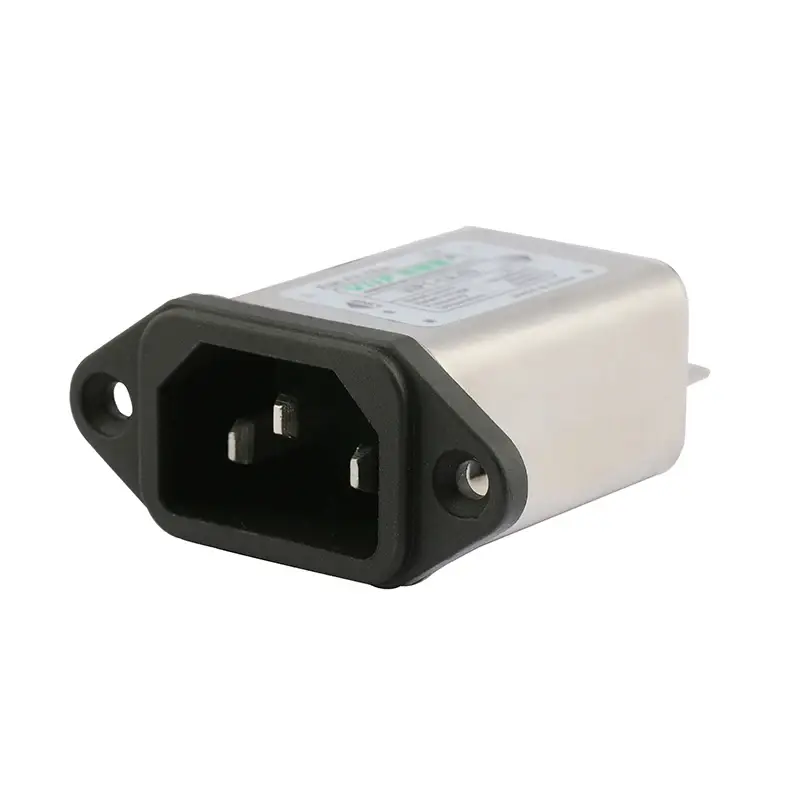

Ac Line Emi Filter Series

I. Basic Principles of Single-Phase Filters As the name suggests, a single-phase filter is a filter that processes a single-phase signal. Its main purpose is to allow specific frequency signals to pass through while blocking or attenuating signals of other frequencies. Specifically, it can be classified into the following types:


Low-pass filter: Only allows signals below a specific frequency to pass through, commonly used for removing high-frequency noise.
High-pass filter: Only allows signals above a specific frequency to pass through, commonly used for eliminating low-frequency interference.
Bandpass filter: Only permits signals within a specific frequency range to pass through, used for processing signals within a particular frequency band.
Bandstop filter: Blocks signals within a specific frequency range while allowing signals of other frequencies to pass through.

II. Types and Characteristics of Single-Phase Filters Based on their structure and operating principles, single-phase filters can be divided into several types, each with its unique characteristics:


Passive Filters: Comprising components like resistors, capacitors, and inductors, these filters do not require an external power source, operate stably, but may have limitations in frequency response.
Active Filters: Besides passive components, these filters include active elements like amplifiers, allowing for more complex frequency response characteristics but needing an external power source.
Digital Filters: Utilizing digital technology for filtering, these filters require digital signal processors or microprocessors to operate, enabling highly sophisticated filtering properties but may have issues like latency.

III. Applications of Single-Phase Filters Due to their unique functionalities, single-phase filters find widespread applications across various fields:


Communication Systems: Filters help eliminate unwanted frequencies in communication, ensuring clear signal transmission.
Audio Processing: In sound systems or music production, filters can adjust specific frequency components of audio signals to achieve desired sound effects.
Industrial Automation: Filters are widely used in sensor signal processing, noise reduction, and other industrial automation applications.
Medical Field: In medical imaging or biological signal processing, filters can enhance signal quality.

IV. Importance of Single-Phase Filters in Everyday Life While we may not always be aware, single-phase filters are omnipresent in our daily lives. From smartphones and TVs to household appliances, almost all electronic devices rely on filters to ensure their proper functioning. Without filters, we might experience noise interference leading to communication disruptions or degraded device performance. Therefore, understanding the basic principles and applications of single-phase filters is highly beneficial for anyone interested in electronics technology.

Conclusion: Single-phase filters constitute a fundamental aspect of electronic engineering, underscoring their undeniable importance. Whether you are an electronic engineer or merely an enthusiast interested in electronics, understanding the basics of this field is crucial. We hope this article provides you with a comprehensive perspective, helping you better comprehend the intricacies of single-phase filters.

Shenzhen VIIP Electronics Co., Ltd. is an EMC service provider primarily engaged in the research, production, and sales of EMC anti-interference components. The company's main products include power filters, EMI anti-interference ferrite cores, amorphous magnetic ring inductance series, and EMC shielding materials.

Specifically, it can be classified into the following types:


Low-pass filter: Only allows signals below a specific frequency to pass through, commonly used for removing high-frequency noise.
High-pass filter: Only allows signals above a specific frequency to pass through, commonly used for eliminating low-frequency interference.
Bandpass filter: Only permits signals within a specific frequency range to pass through, used for processing signals within a particular frequency band.
Bandstop filter: Blocks signals within a specific frequency range while allowing signals of other frequencies to pass through.

II. Types and Characteristics of Single-Phase Filters Based on their structure and operating principles, single-phase filters can be divided into several types, each with its unique characteristics:


Passive Filters: Comprising components like resistors, capacitors, and inductors, these filters do not require an external power source, operate stably, but may have limitations in frequency response.
Active Filters: Besides passive components, these filters include active elements like amplifiers, allowing for more complex frequency response characteristics but needing an external power source.
Digital Filters: Utilizing digital technology for filtering, these filters require digital signal processors or microprocessors to operate, enabling highly sophisticated filtering properties but may have issues like latency.

III. Applications of Single-Phase Filters Due to their unique functionalities, single-phase filters find widespread applications across various fields:


Communication Systems: Filters help eliminate unwanted frequencies in communication, ensuring clear signal transmission.
Audio Processing: In sound systems or music production, filters can adjust specific frequency components of audio signals to achieve desired sound effects.
Industrial Automation: Filters are widely used in sensor signal processing, noise reduction, and other industrial automation applications.
Medical Field: In medical imaging or biological signal processing, filters can enhance signal quality.

IV. Importance of Single-Phase Filters in Everyday Life While we may not always be aware, single-phase filters are omnipresent in our daily lives. From smartphones and TVs to household appliances, almost all electronic devices rely on filters to ensure their proper functioning. Without filters, we might experience noise interference leading to communication disruptions or degraded device performance. Therefore, understanding the basic principles and applications of single-phase filters is highly beneficial for anyone interested in electronics technology.

Conclusion: Single-phase filters constitute a fundamental aspect of electronic engineering, underscoring their undeniable importance. Whether you are an electronic engineer or merely an enthusiast interested in electronics, understanding the basics of this field is crucial. We hope this article provides you with a comprehensive perspective, helping you better comprehend the intricacies of single-phase filters.

Shenzhen VIIP Electronics Co., Ltd. is an EMC service provider primarily engaged in the research, production, and sales of EMC anti-interference components. The company's main products include power filters, EMI anti-interference ferrite cores, amorphous magnetic ring inductance series, and EMC shielding materials.

I. Definition of Electromagnetic Interference

Electromagnetic Interference (EMI) refers to any electromagnetic phenomenon that occurs when voltage and current are present in a conductive medium or in the presence of an electromagnetic field, which can degrade the performance of a device, equipment, or system, and may also have adverse effects on living organisms or substances. It is mainly divided into two types: conducted interference and radiated interference. Conducted interference refers to coupling (interference) a signal from one electrical network to another through a conductive medium; while radiated interference refers to coupling (interference) a signal from the interference source to another electrical network through space.

II. Generation of Electromagnetic Interference

The generation of electromagnetic interference mainly stems from internal interference and external interference. Internal interference primarily originates from mutual interference among various components within electronic devices, such as interference caused by leakage currents generated by distributed capacitance and insulation resistance in power lines, impedance coupling among signal lines, power lines, and transmission lines, or interference caused by mutual inductance between conductors. External interference refers to factors outside electronic devices or systems that interfere with circuits, equipment, or systems, such as lightning strikes or switching operations of nearby electrical equipment.

III. Strategies for Suppressing Electromagnetic Interference


Power Filter

A power filter is a filtering circuit composed of capacitors, inductors, and resistors, mainly used to filter out specific frequency points in the power line or frequencies beyond that point, thus obtaining a power signal at a specific frequency or eliminating the power signal after a specific frequency. The main principle of a power filter is impedance matching network, which effectively attenuates electromagnetic interference by increasing impedance matching between the input and output sides of the power filter and the power and load sides. Therefore, correctly selecting and using power filters can to some extent address the electromagnetic interference issues of devices.


Coupling of External Interference (Input and Output)

Coupling of external interference mainly occurs at the input and output ends of the filter. To reduce this coupling, it is necessary to design the input and output circuits of the filter reasonably and optimize the layout and grounding method of the filter. For example, common-mode chokes or differential-mode capacitors can be added at the input end to filter out common-mode or differential-mode interference.


Switch Tubes

As important components in electronic devices, the changing operating states of switch tubes may generate electromagnetic interference. To reduce this interference, switch tubes with lower electromagnetic radiation can be selected, or the electromagnetic interference they produce can be reduced by optimizing the drive circuit and operating mode of the switch tubes.


Transformers

Transformers may generate electromagnetic interference during operation, mainly due to changes in their magnetic fields. To reduce this interference, transformers with low magnetic leakage and low noise can be selected, or the electromagnetic interference they produce can be reduced by optimizing the layout and grounding method of the transformers.


Diodes and Energy Storage Inductors

Diodes and energy storage inductors are widely used in electronic devices, but changes in their operating states may also generate electromagnetic interference. To reduce this interference, diodes and inductors with excellent electrical performance can be selected, or their electromagnetic interference can be reduced by optimizing their operating circuits and layouts.


PCB Layout and Routing

The layout and routing of PCBs have a significant impact on electromagnetic interference. To reduce electromagnetic interference, it is necessary to optimize the layout of PCBs by separating high-frequency signal lines and sensitive signal lines as much as possible to reduce coupling between them. Additionally, routing should be designed reasonably to avoid excessively long, thin, or complex traces to minimize electromagnetic radiation and crosstalk.

In conclusion, while power filters are an effective means to address equipment interference issues, it is also necessary to combine other strategies to suppress electromagnetic interference, such as optimizing the coupling of external interference, switch tubes, transformers, diodes, energy storage inductors, PCB layout, and routing. Only by comprehensively and effectively addressing equipment electromagnetic interference issues can the best interference suppression results be achieved in practical applications. It is important to select appropriate strategies based on the specific conditions of the equipment and the characteristics of the interference sources.

Power filters are essential components in electronic devices, with the main function of filtering the input power signal to remove noise and other interference, providing a stable and smooth direct current or alternating current voltage to ensure the normal operation of electronic devices. Power filters are widely used in electronic products, especially in high-end electronic products that require signal stability, reliability, and safety.

In addition to the main functions and roles mentioned above, power filters can also serve the following purposes:


Filter out high-frequency noise in the input power, reduce interference to the system, and minimize electromagnetic radiation.
Prevent transient changes in the power supply circuit to avoid impacting the system.
Avoid sudden surges in the power line to enhance system reliability and stability.

So, how can the performance of power filters be tested?


Leakage Current

Leakage current refers to the current flowing between the phase line, neutral line, and the filter casing (ground line) under a voltage of 250VAC. It primarily depends on the value of the ground capacitor (common mode capacitor). A larger common mode capacitor CY can improve insertion loss but may result in higher leakage current.


Withstand Voltage

To ensure the performance of the power filter, as well as the safety of equipment and personnel, withstand voltage testing must be conducted. Withstand voltage testing is performed under extreme operating conditions. If the withstand voltage performance of the CX capacitor is poor, it may break down when peak surge voltage occurs. While its breakdown may not endanger personal safety, it can cause the filter to lose functionality or performance.


Performance Evaluation

When using EMI power filters, the most important considerations are the rated voltage and current values, withstand voltage performance, and leakage current. The primary performance evaluation of a filter is its insertion loss performance.

The ability of an EMI power filter to suppress interference noise is measured using Insertion Loss (I.L.). Insertion loss is defined as the ratio of the power P1 transmitted from the noise source to the load without the filter connected to the power P2 transmitted from the noise source to the load with the filter connected, expressed in decibels (dB).


Standard Insertion Loss Testing
Load Insertion Loss Testing
Time Domain Testing for EMI Filters


Design of an Automatic Insertion Loss Testing System for EMI Filters

As EMC testing becomes more complex and the workload increases, the requirements for testing equipment in terms of functionality, performance, testing speed, and accuracy are also rising. Traditional manual testing is increasingly unable to meet these requirements. National standards (GB) and national military standards (GJB) both require EMC testing to be automated, with strict requirements for data post-processing. Therefore, the development of EMC automatic testing has become essential. The automatic testing system established in this article utilizes virtual instrument technology and is based on a signal source and spectrum analyzer to test the insertion loss of EMI power filters.

I. Basic Principles of Three-Phase AC Filters

A three-phase AC filter is a device used to filter specific frequency harmonics in three-phase AC power. Its basic principle involves using components such as inductors and capacitors to form a resonant circuit that absorbs or suppresses specific frequency harmonics, thereby improving power quality. Three-phase AC filters are typically composed of multiple single-phase filters to adapt to the characteristics of three-phase AC power.

II. Classification of Three-Phase AC Filters

Three-phase AC filters can be classified into two main categories: passive filters and active filters, based on their filtering principles and application scenarios.


Passive Filters: These filters are primarily composed of passive components such as inductors, capacitors, and resistors. They have a simple structure, low cost, and are suitable for scenarios with low harmonic content and less demanding filter performance.
Active Filters: These filters work by detecting harmonic currents in the power grid and generating compensating currents that are opposite in phase to eliminate the harmonics. Active filters have advantages such as fast response and good filtering effects, but their cost is relatively high.

III. Applications of Three-Phase AC Filters

Three-phase AC filters have a wide range of applications in power systems, including the following aspects:


Harmonic Mitigation: In power systems, various nonlinear loads (such as rectifiers and inverters) can generate substantial harmonic currents that threaten the stable operation of the grid and the safety of equipment. Installing three-phase AC filters can effectively filter out these harmonic currents, improving power quality.
Power Factor Correction: Some power electronic devices generate reactive power during operation, resulting in a lowered power factor in the grid. Three-phase AC filters can compensate for reactive power, improving the power factor and reducing line losses.
Voltage Fluctuation Suppression: In power grids, voltage may fluctuate due to load changes or faults. Three-phase AC filters can adjust their parameters to suppress voltage fluctuations and enhance grid stability.

IV. Design and Optimization of Three-Phase AC Filters

To meet the needs of different power systems, the design and optimization of three-phase AC filters are particularly important. During the design process, it is crucial to consider factors such as the harmonic characteristics of the power grid, types of loads, and filter costs, to select suitable filter types, parameters, and topologies. Additionally, simulation analysis and experimental validation of the filters are necessary to ensure good filtering performance and stability in practical applications.

V. Conclusion

As key components in power systems, three-phase AC filters play an essential role in ensuring power quality and suppressing harmonic interference. With the continuous development of power electronic technology and the expanding application fields, the design and optimization of three-phase AC filters will gain increasing attention. Looking ahead, we have reason to believe that three-phase AC filters will play an even more important role in power systems, contributing significantly to the prosperity and development of the electricity sector.
