VIIP Filter Dc Power Filter Dc Power Filter Series

Product Overview

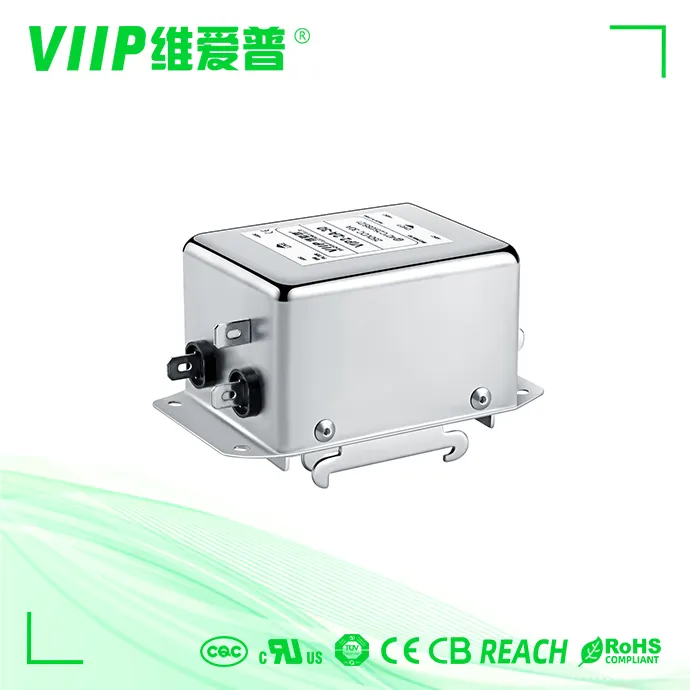

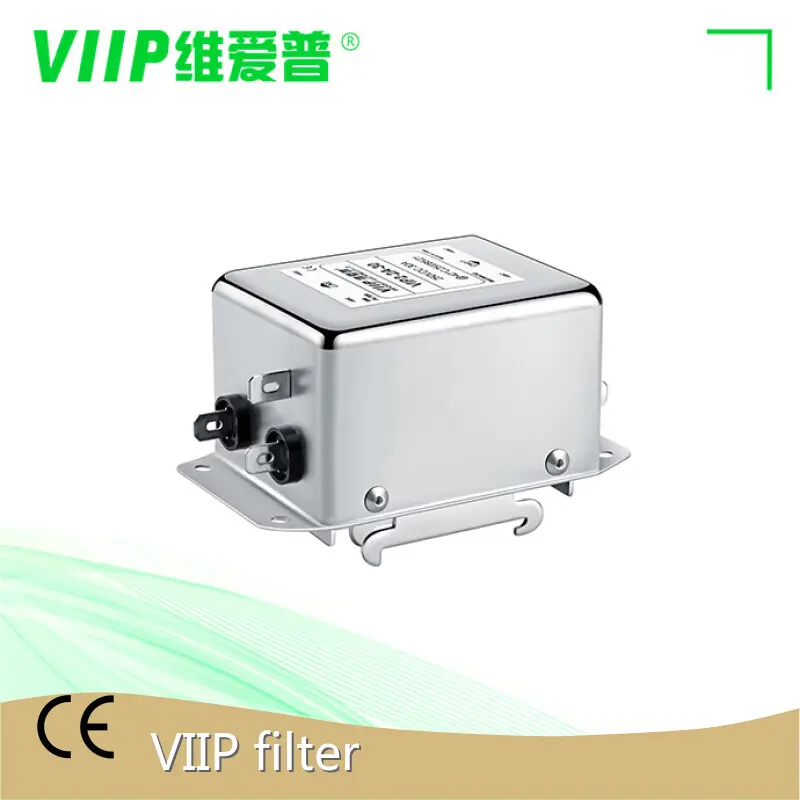

- The VIIP DC Power Filter series (also marketed as DC EMI Filters, e.g., model VIP2/VIP2-2A-10) are compact metal‑housed filters designed to suppress high‑frequency electromagnetic interference on DC power lines.

- Available in a wide current and configuration range (typical series coverage 1 A to 3,000 A; common VIP2 family 1 A–100 A with example 10 A unit) and rated for 250 VDC.

- Manufacturing is supported by large production bases (Huizhou and Bozhou) with daily capacity of 3,000–5,000 units and custom design options for different installation types (IEC socket, PCB, chassis, single‑ and three‑phase systems).

Product Features

- High attenuation: insertion loss ≥50 dB (min) and input impedance 50 Ω for effective EMI/RFI suppression.

- Compact, robust construction: metal housing, small footprint (example dimensions Ø6.5 mm × 13 mm), SMD/inverter package options.

- Electrical and environmental ratings: insulation resistance ≥100 MΩ, leakage current ≤0.5 mA, operating temperature range −40 °C to +85 °C.

- Flexible ratings and packaging: models cover broad current ranges (1 A–100 A typical for VIP2; series extends to 3,000 A), carton packaging, and IEC/PCB mounting types.

Product Value

- Improves equipment performance and reliability by reducing conducted EMI/RFI on DC power lines, preventing malfunctions and data loss.

- Extends service life of sensitive electronics by protecting them from interference-related stress.

- Cost‑effective filtration solution that helps avoid costly downtime, rework or compliance issues while supporting IEC compatibility for regulated installations.

- Customizable solutions let customers match filter electrical/mechanical specs to precise system requirements.

Product Advantages

- Proven quality and compliance: manufactured to international quality inspection standards with thorough design validation and quantitative market research input.

- Production scale and responsiveness: large manufacturing capacity and experience enable fast supply and volume orders.

- Broad product portfolio and customization: many models, currents, voltages and mounting options to fit diverse applications.

- Durable design: metal housing and robust electrical specs (high insulation, low leakage) for reliable long‑term use.

- After‑sales support: technical assistance, repair/maintenance services and attentive packaging/shipping processes for global delivery.

Application Scenarios

- Telecommunications and IT: network routers, servers, Ethernet hubs, base stations.

- Power systems and conversion: power supplies, photovoltaic inverters, frequency inverters, energy systems.

- Motion and charging: DC motor drives, DC chargers.

- Industrial, medical and automotive electronics, and military systems where conducted EMI can impair performance or compliance is required.
